FNIRSI-FNB58 USB Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement

FNB58

$63.36

$63.36 $90.52

FNIRSI-FNB58 USB Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement

$63.36

$63.36 $90.52

Estimated delivery: 4–7 business days (Standard) · 2–4 (Express)

SPECIFICATIONS

Accuracy Class: 1%

Battery Included: no

Brand Name: FNIRSI

Cable resistance: 0-9999.9Ω

Capacity: 0-9999.99Ah

Certification: CE,FCC,RoHS,UL

Choice: yes

D+/D- voltage: 0-3.3V

DIY Supplies: Electrical

Data Record: Yes

Dimensions: /

Display Type: Digital Only

Energy used: 0-9999.99Wh

Equipmnt running time: 99days 23:59:59

High-concerned chemical: none

Load equivalent internal resistance: 0-9999.9Ω

Model Number: FNB58

Monitor current: 0-7A

Monitor power range: 0-140W

Monitor voltage: 4-28V

Operating Temperature: 0-50

Origin: Mainland China

Power Source: AC

Power Supply: AC

Record time: 99days 23:59:59

Semi-finishedproduct: No

Voltage range: Other

semi_Choice: yes

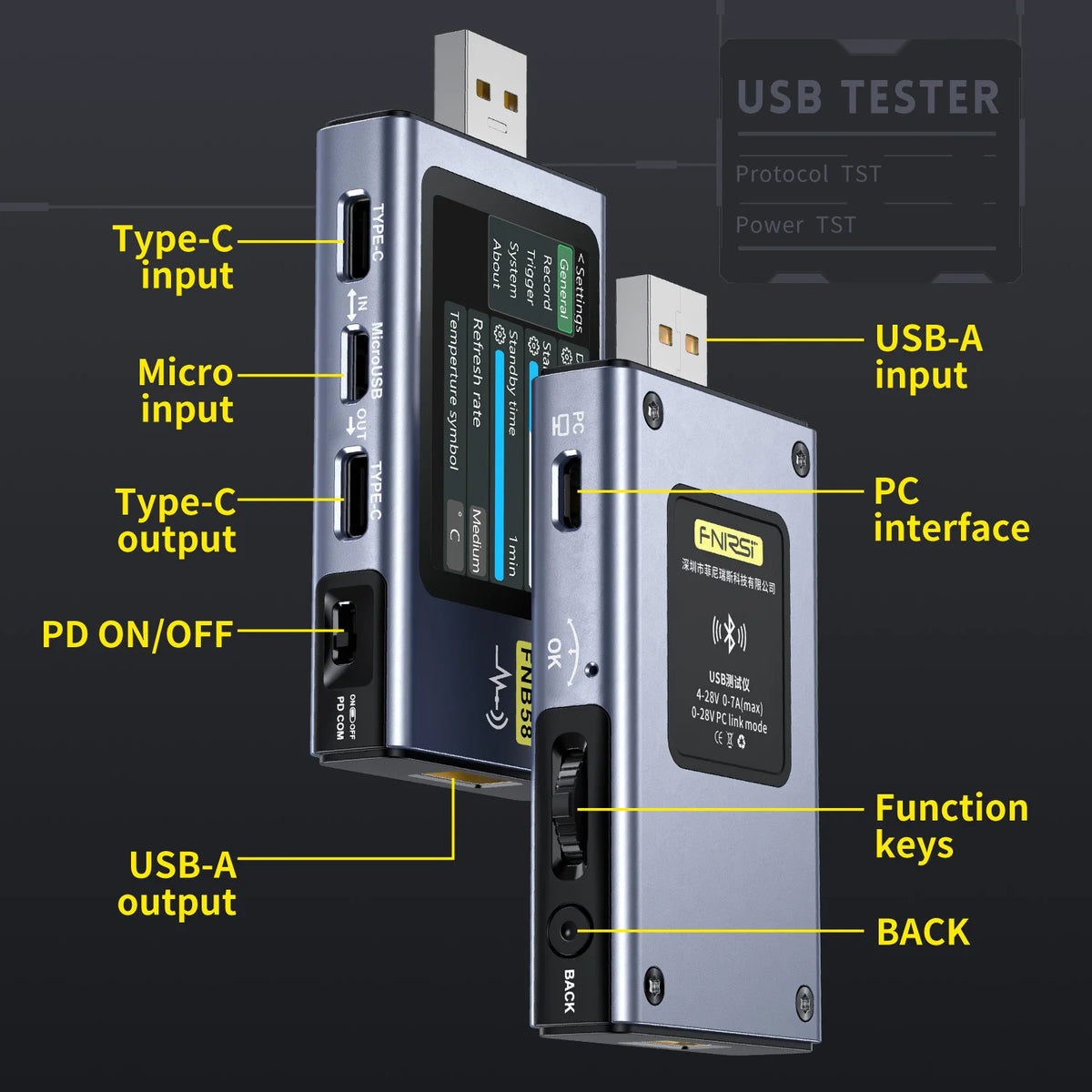

The FNB58USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
