Smart Digital Voltage Multimeter ANENG SZ303 Professional Current Electrical Resistance Diode Buzzer High Precision Portable Too
Smart Digital Voltage Multimeter ANENG SZ303 Professional Current Electrical Resistance Diode Buzzer High Precision Portable Too
SPECIFICATIONS
AC Current: 200uA-10A
AC Voltage: 0mV-600V
ANENG Model: SZ303
Auto power off: 15 If there is no operation,it willautomatically shut down
Back support frame: Yes
Battery Included: no
Brand Name: ANENG
Buzzer: Yes
Choice: yes
Color: Red Black
DC Current: 200uA-10A
DC Voltage: 0mV-600V
DIY Supplies: Electrical
Diode: Yes
Display Type: Digital Display
High-concerned chemical: None
Material: ABS
Max count: 1999 counts
Measuring Resistance Range: 0Ω-20MΩ
Model Number: ANENG SZ303 Multimeter Tester
NCV: Yes
Operating Mode: Auto Range
Origin: Mainland China
Semi-finishedproduct: No
Smart Digital Voltage Multimeter ANENG SZ303 Professional Current Electrical Resistance Diode Buzzer High Precision Portable Tools
Introduction ：
This digital multimeter is designed and produced in accordance with the safety requirements of the international work safety standard IEC-61010 for electronic measuring instruments and handheld digital multimeters.
Complies with the requirements of 600V CAT IV, 600V CAT III and pollution level 2 of IE61010. Before using this instrument, please carefully read the user manual and pay attention to relevant safety work guidelines.

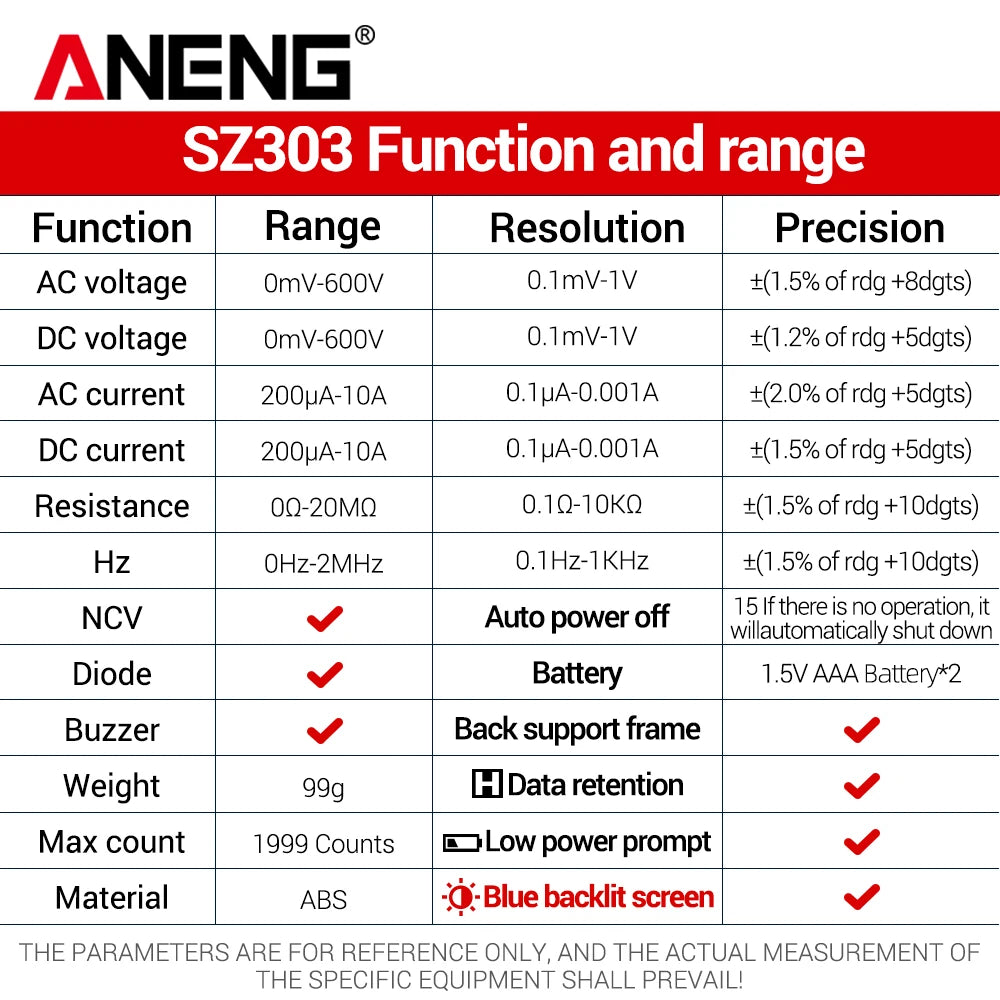

Feature:
Function |
Range |
Resolution |
Precision |
VC voltage |
0mV-600V |
0.1mV-1V |
±(1.5% of rdg +8dgts) |
DC voltage |
0mV-600V |
0.1mV-1V |
±(1.2% of rdg +5dgts) |
AC current |
200μA-10A |
0.1μA-0.001A |
±2.0% of rdg +5dgts) |
DC current |
200μA-10A |
0.1μA-0.001A |
±(1.5% of rdg +5dgts) |
Resistance |
0Ω-20MΩ |
0.1Ω-10KΩ |
±(1.5% of rdg +10dgts) |
Hz |
0Hz-2MHz |
0.1HZ-1KHZ |
±(1.5% of rdg +10dgts) |
NCV |
√ |
Auto power off |
15 lf there is no operation, itwillautomatically shut down |
Diode |
√ |
Battery |
1.5V AAA Battery*2(without shipment) |
Buzzer |
√ |
Back support frame |
√ |
Weight |
99g |
Data retention |
√ |
Max count |
1999 Counts |
Blue backlit screen |
√ |
Material |
ABS |
Low power prompt |
√ |
Package:（Without Battery）

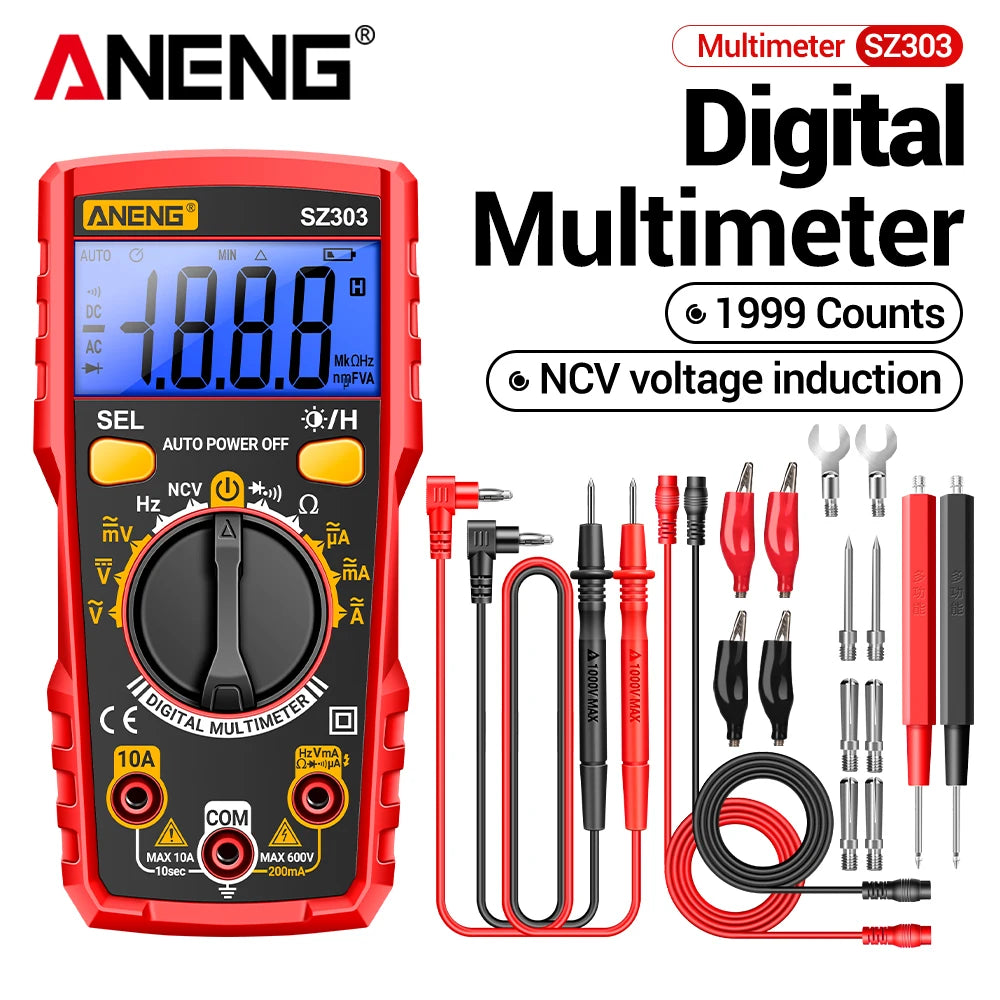

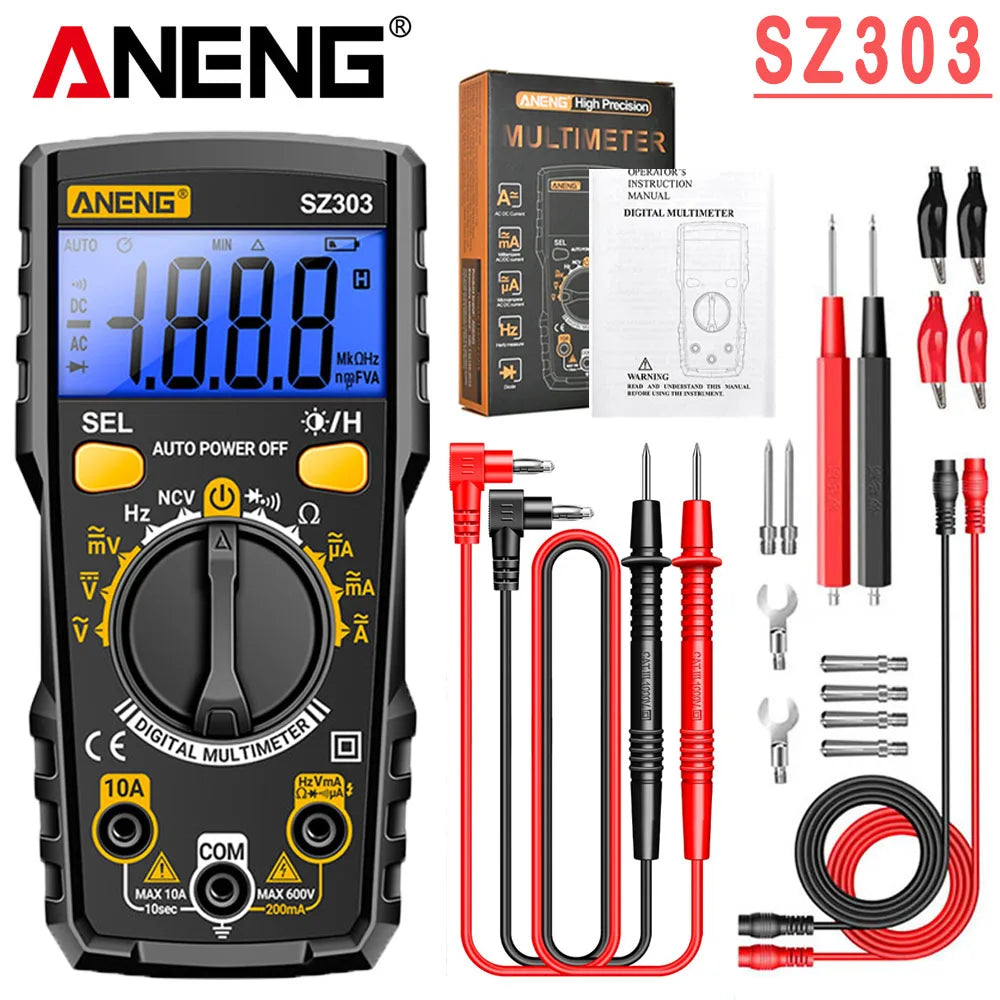

1 * Multimeter
1 * Test pen line
1 * Manual
1 * Packing box
